Orthodontics has made significant strides over the decades, introducing various appliances designed to correct jaw alignment, tooth position, and improve overall oral function. Among these devices, the Herbst appliance stands out for its effectiveness in managing Class II malocclusion, especially in growing adolescents. This article explores the details of the Herbst appliance orthodontics treatment, covering its history, design, mechanism of action, benefits, risks, and clinical considerations for both patients and professionals.

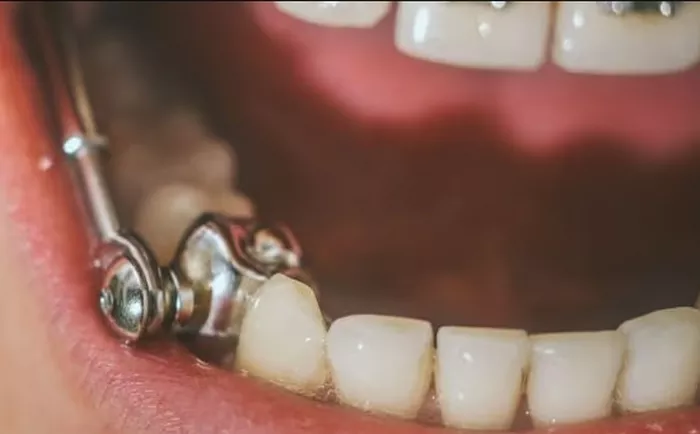

What is the Herbst Appliance?
The Herbst appliance is a fixed functional orthodontic device primarily used to correct skeletal discrepancies between the upper and lower jaws. Developed by Dr. Emil Herbst in 1909, this appliance was initially overlooked for several decades until its reintroduction and modernization in the late 1970s.
The main objective of the Herbst appliance is to encourage forward growth of the mandible (lower jaw) while simultaneously restraining the forward growth of the maxilla (upper jaw), thus facilitating proper occlusion and facial harmony. It is typically recommended for young patients who are still in their growth phase, although in some cases, it is also used in adult orthodontics with adjunctive measures.
Indications for Herbst Appliance in Orthodontics
The Herbst appliance is indicated for the treatment of Class II malocclusion, characterized by a retruded mandible or a protruded maxilla. Some specific conditions include:
- Skeletal Class II malocclusion with mandibular deficiency
- Excessive overjet (horizontal overlap of front teeth)
- Deep overbite
- Airway issues due to mandibular positioning
- Mandibular retrognathism associated with facial esthetic concerns
It is essential for orthodontic professionals to conduct a comprehensive clinical and radiographic examination before determining candidacy for Herbst appliance therapy.
Components of the Herbst Appliance
The Herbst appliance consists of several parts that work in unison to posture the mandible forward:
Telescopic Mechanism (Piston/Rod and Tube Assembly):
This mechanism is the most recognizable part of the appliance. It connects the maxillary and mandibular molars on both sides and allows the lower jaw to open and close while being postured forward.
Bands or Crowns on First Molars:
These metal bands or crowns are cemented onto the molars and serve as anchors for the appliance.
Lower Lingual Arch:
A bar that connects the mandibular molars and stabilizes the appliance in the lower jaw.
Upper Palatal Bar:
An arch that connects the upper molars, providing additional stability.
These components are customized based on the patient’s dental anatomy and treatment goals.
Mechanism of Action
The Herbst appliance functions by holding the mandible in a forward position, thereby inducing orthopedic and dental changes:
Orthopedic Changes:
Mandibular Growth Stimulation:
Continuous forward positioning of the jaw stimulates growth at the condylar cartilage, promoting lengthening of the mandibular bone.
Maxillary Growth Inhibition:
By applying a restraining force to the maxilla, the appliance slows down its forward growth, thereby correcting jaw imbalance.
Dental Changes:
Upper Molar Distalization:
The pressure exerted helps move upper molars backward.
Lower Incisor Proclination:
Mandibular incisors often move slightly forward as a compensatory mechanism.
Improved Overjet and Overbite:
The appliance aids in reducing horizontal and vertical overlaps of the anterior teeth.
These combined orthopedic and dental changes contribute to a more harmonious occlusion and facial profile.
Clinical Phases of Herbst Appliance Orthodontics
1. Case Selection and Treatment Planning:
Comprehensive assessment using photographs, radiographs (lateral cephalometric and panoramic), and dental models
Evaluation of skeletal and dental relationships
Growth prediction and facial esthetics evaluation
Discussion of goals, benefits, risks, and commitment required
2. Appliance Fabrication and Placement:
Impressions or intraoral scans for lab fabrication
Band or crown try-in followed by cementation
Adjustment of telescopic rods for initial mandibular advancement
Delivery instructions including hygiene practices and dietary restrictions
3. Active Treatment Phase:
Typically lasts between 9 to 12 months
Regular follow-ups every 4 to 6 weeks for appliance checks and adjustments
Monitoring skeletal and dental changes using radiographs and photographs
Coordination with braces or aligners if required for full orthodontic correction
4. Retention and Monitoring:
Once the appliance is removed, retainers may be used to maintain jaw and tooth positions
Periodic check-ups to assess stability
Final documentation with post-treatment records
Advantages of the Herbst Appliance in Orthodontics
The Herbst appliance offers several clinical and practical advantages:
Non-Compliance Dependent:
Unlike removable functional appliances (e.g., Twin Block), the Herbst is fixed, meaning its effectiveness doesn’t rely on patient cooperation.
Simultaneous Orthodontic Treatment:
Braces can often be placed simultaneously to address tooth alignment, speeding up overall treatment time.
Efficient Skeletal Correction:
Particularly effective during pubertal growth spurts, it capitalizes on active bone growth.
Improved Facial Profile:
Forward mandibular positioning can enhance facial balance and esthetics.
Reduced Overjet Risk:
By advancing the lower jaw, it minimizes trauma risk to protruding upper incisors.
Challenges and Limitations
Despite its benefits, the Herbst appliance does come with some drawbacks:
1. Initial Discomfort and Adaptation:
Patients often experience soreness in the jaw muscles and teeth for the first few days.
Speech and chewing may feel awkward initially.
Soft tissue irritation from appliance parts is not uncommon.
2. Appliance Breakage or Loosening:
Telescopic rods or screws may become loose or break with improper care.
Emergency visits may be necessary to adjust or repair parts.
3. Dental Side Effects:
Lower incisor flaring and upper molar distal tipping are potential side effects.
Tooth mobility or enamel demineralization if hygiene is inadequate.
4. Limited Use in Non-Growing Patients:
Skeletal changes are less effective in adults, where mandibular growth has ceased.
In such cases, surgical orthodontics may be required for similar outcomes.
Herbst Appliance in Combination Treatments
In many complex orthodontics cases, the Herbst appliance is used alongside other interventions:
1. Braces or Aligners:
Fixed braces can be placed before, during, or after Herbst therapy to align the dentition.
In select cases, aligners like Invisalign may be used post-Herbst for fine-tuning.
2. Temporary Anchorage Devices (TADs):
TADs may be used to control unwanted molar movements during or after Herbst therapy.
3. Myofunctional Therapy:
To retrain tongue posture, improve swallowing, and reduce mouth breathing, especially if functional habits contribute to malocclusion.
4. Orthognathic Surgery:
In adults or severe skeletal discrepancies, Herbst therapy may serve as a pre-surgical orthodontic phase.
Research and Evidence in Support of Herbst Appliance
Numerous studies have evaluated the Herbst appliance’s effectiveness. Some key findings include:
McNamara et al. (1981): Demonstrated significant skeletal changes in growing patients using cephalometric analysis.
Franchi and Baccetti (2005): Found optimal mandibular advancement effects when applied during the pubertal growth spurt.
Pancherz (2003): Longitudinal data showed lasting results in sagittal jaw correction and reduced overjet.
Pancherz and Ruf (2008): Reported that skeletal improvements remained stable in the long term when followed by retention and comprehensive orthodontics.
These findings reinforce the Herbst appliance’s role as a cornerstone in growth modification therapy within orthodontics.
Conclusion
The Herbst appliance is a powerful tool in the armamentarium of modern orthodontics, particularly for growing patients with Class II skeletal discrepancies. Its ability to stimulate mandibular growth, correct jaw imbalances, and improve occlusion makes it invaluable in many clinical situations. Despite certain limitations and side effects, with proper case selection, patient education, and follow-up, the Herbst appliance delivers reliable and transformative results.
As orthodontics continues to evolve, integrating new technologies with traditional appliances like the Herbst will only enhance outcomes and patient experiences. Orthodontic professionals should remain informed about current protocols, research findings, and patient-centered practices to maximize the benefits of Herbst appliance therapy.
