Dental implants are a popular and effective solution for replacing missing teeth. However, for implants to be successful, certain conditions must be met, including the availability of adequate space in the jawbone. Proper space is crucial for the stability, function, and longevity of dental implants. In this article, we will explore how much space is needed for dental implants, factors that influence space requirements, and the considerations for successful implant placement.
What Is Dental Implants?
A dental implant is a titanium screw-like post that is surgically inserted into the jawbone to act as a replacement for the root of a missing tooth. Over time, the implant fuses with the bone in a process called osseointegration, providing a solid foundation for a crown, bridge, or denture. Dental implants can replace a single tooth, multiple teeth, or even a full arch of teeth. For implants to be stable and functional, sufficient space must be available in both the bone and the surrounding tissues.
Minimum Space Requirements for Dental Implants
When considering space for dental implants, two main aspects must be evaluated:
- Bone Width and Height
- Interdental and Interocclusal Space
1. Bone Width and Height
The bone in which the implant is placed must have sufficient dimensions to accommodate the implant’s length and diameter. The minimum bone width and height needed for a dental implant depend on several factors, including the type and size of the implant, the location in the mouth, and the patient’s bone density.
Bone Width: For most standard dental implants (typically 3.5-4.2 mm in diameter), at least 1 mm of bone should surround the implant on all sides. This means that a minimum bone width of 6-7 mm is needed.
Narrower implants (often 3-3.5 mm) can be used in cases where the bone width is limited, but this may not be suitable for all situations, particularly for replacing molars that need more strength.
Bone Height: The minimum bone height needed for a dental implant is generally 10 mm. However, shorter implants can sometimes be used in areas with limited bone height. The height of the bone should be sufficient to ensure the implant is fully anchored and stable. Shorter implants (e.g., 6-8 mm) may be used in cases where the bone height is insufficient, but this can increase the risk of complications over time.
2. Interdental and Interocclusal Space
Aside from the bone, sufficient space must also be available between the adjacent teeth (interdental space) and between the upper and lower teeth (interocclusal space).
Interdental Space: The standard minimum interdental space for a single implant is about 6-7 mm. This space is necessary to ensure that the implant can be placed without damaging adjacent teeth.
Additionally, it provides enough room for the abutment and crown, allowing for a natural appearance and proper function.

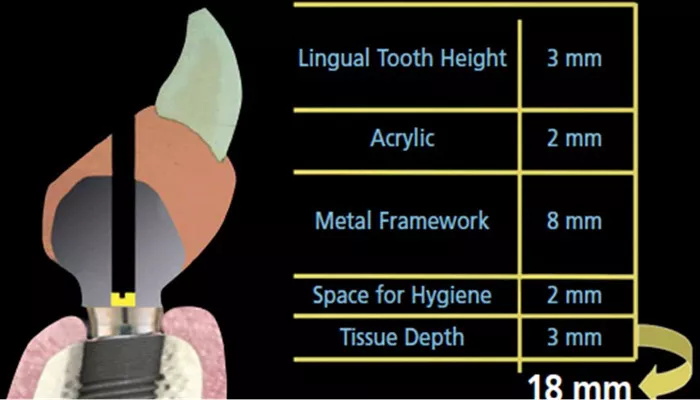

Interocclusal Space: The interocclusal space, or the distance between the upper and lower teeth when the mouth is closed, must be sufficient to accommodate the prosthetic components (e.g., abutment and crown). Ideally, 5-7 mm of interocclusal space is recommended. If there is insufficient space, it can lead to complications in implant placement and affect the final aesthetic result.
Factors Influencing Space Requirements for Dental Implants
Several factors can influence the amount of space needed for dental implants, including:
1. Location in the Mouth
The placement of implants in the upper or lower jaw can affect space requirements. The bone in the posterior region (back of the mouth) is often denser in the lower jaw, which can provide better support for implants, but the bone width may be limited. On the other hand, the upper jaw (especially in the molar region) may have softer bone, which can make implant placement more challenging. Therefore, adequate assessment of the bone in the target area is essential.
2. Size and Shape of the Implant
The size and shape of the implant can vary depending on the specific situation. For instance, a single-tooth implant for a missing front tooth will typically be narrower and shorter than an implant placed to replace a molar. The implant diameter usually ranges from 3 mm to 7 mm, while the length can range from 6 mm to 16 mm. Larger implants require more space but can offer more stability.
3. Adjacent Teeth and Structures
Dental implants should not interfere with adjacent teeth or anatomical structures such as the sinus cavity (in the upper jaw) or the inferior alveolar nerve (in the lower jaw). For this reason, there must be at least 1.5 mm of space between the implant and adjacent teeth. Additionally, there should be at least 2 mm of space from vital structures like nerves and sinuses to prevent complications.
SEE ALSO: How Big Is A Dental Implant Screw?
4. Bone Density
Bone density affects the amount of space needed for implants. Higher bone density provides better stability for the implant, while lower bone density may require additional treatments, such as bone grafting, to create the necessary conditions for implant placement.
Considerations for Successful Dental Implant Placement
1. Bone Grafting
If there is insufficient bone volume, a bone graft procedure may be required to build up the bone to accommodate the implant. Bone grafting can be performed using autogenous bone (bone from the patient’s own body), allografts (donor bone), or synthetic materials. The decision to use bone grafts is based on the degree of bone loss, the size of the implant, and the location of the missing tooth.
2. Sinus Lift
A sinus lift procedure may be necessary for implants placed in the upper jaw’s posterior region (near the molars and premolars). The sinus lift raises the sinus membrane to create more bone height, allowing for the successful placement of dental implants. This is commonly needed when the bone height is insufficient due to sinus expansion after tooth loss.
3. Orthodontic Treatment
In some cases, orthodontic treatment may be required to create enough space for the implant. For example, if adjacent teeth have shifted into the space left by a missing tooth, braces or clear aligners may be used to reposition them, making room for the implant. This is often a necessary step to ensure the proper alignment of the implant and the final prosthetic.
Steps to Determine Adequate Space for Dental Implants
Consultation and Examination: The first step is a thorough consultation with a dentist or oral surgeon. During this appointment, the patient’s medical and dental history is reviewed, and a clinical examination is performed.
Imaging (X-rays and CBCT Scans): Dental X-rays and 3D imaging (CBCT scans) provide detailed information about the jawbone structure, bone density, and location of anatomical structures. This helps in determining the available space and planning the precise placement of the implant.
Bone and Space Assessment: The dentist assesses the bone width, height, and density. They also measure the interdental and interocclusal spaces to determine if they meet the minimum requirements.
Planning and Placement: Based on the assessment, the dentist will decide on the type, size, and placement of the implant. Any additional procedures, such as bone grafting or sinus lifts, will be planned accordingly.
Conclusion
Adequate space is a critical factor for the success of dental implants. Ensuring that there is sufficient bone width, height, and soft tissue space helps prevent complications and promotes the longevity of the implants. In cases where space is insufficient, procedures like bone grafting, sinus lifts, or orthodontic treatments can help create the necessary conditions for successful implant placement.
